In this guide, we will cover the basic server installation. The server and web console can be installed either in the cloud or in offline environments, depending on your specific requirements.

Network Structure

The agents only perform outgoing connections, so port forwarding is not required on these machines. The web console renders the content server-sided and then sends it to the admin user's browser. Therefore, a permanent connection between the web console and admin user is necessary for operation.

The web console communicates either directly with the SQL server or contacts the NetLock remote server through SignalR in cases like using the remote shell and file browser for real-time processes. Ensure the connection between the web console and NetLock remote server is possible. The web console should only be accessible from trusted environments.

Guided/Automated Installation

NetLock RMM can be deployed in any environment with Docker support. This also includes setups like Cloudflare tunnels or similar. Our script builder focuses on typical server installations.

If you need assistance in the deployment of NetLock RMM in non-standard environments, consider reaching out to our support team for guidance.

Navigate to our installation tool and follow the steps:

Open Installation Tool

Happy monitoring! 🥳

Manual Installation

Requirements

Latest version of Docker
MySQL Server, minimum version 8.0
2 Cores (may vary depending on the number of agents you monitor)
8 GB RAM
Note: For high-performance, memory-optimized updates. If insufficient RAM is available, the setup may fail or NetLock RMM may run more slowly due to reliance on swap space. The backend is highly efficient, and 8 GB of RAM is sufficient for at least 2,000+ devices.

Docker Tags

The following tags are available: latest

NetLock RMM Web Console

1. Create a directory to store the appsettings.json file:

mkdir -p /home/netlock/web_console

2. Create directories for Let's Encrypt, internal data & logs:

mkdir -p /home/netlock/web_console/letsencrypt
mkdir -p /home/netlock/web_console/logs
mkdir -p /home/netlock/web_console/internal

3. Create the appsettings.json file:

nano /home/netlock/web_console/appsettings.json

4. Fill in the appsettings.json with your configuration:

appsettings.json

{
  "Logging": {
    "LogLevel": {
      "Default": "Warning",
      "Microsoft": "Error",
      "Microsoft.Hosting.Lifetime": "Warning"
    },
    "Custom": {
      "Enabled": false
    }
  },
  "AllowedHosts": "*",
  "Kestrel": {
    "Endpoint": {
      "Http": {
        "Enabled": true,
        "Port": 80
      },
      "Https": {
        "Enabled": false,
        "Port": 443,
        "Force": false,
        "Hsts": {
          "Enabled": true
        },
        "Certificate": {
          "Path": "/certificates/certificate.pfx",
          "Password": ""
        }
      }
    },
    "IpWhitelist": [],
    "KnownProxies": ["172.18.0.2"]
  },
  "NetLock_Remote_Server": {
    "Server": "netlock-rmm-server",
    "Port": 7080,
    "UseSSL": false
  },
  "NetLock_File_Server": {
    "Server": "netlock-rmm-server",
    "Port": 7080,
    "UseSSL": false
  },
  "MySQL": {
    "Server": "mysql-container",
    "Port": 3306,
    "Database": "vwffyq",
    "User": "root",
    "Password": "frfsL9FGmQWGbZDM",
    "SslMode": "None",
    "AdditionalConnectionParameters": "AllowPublicKeyRetrieval=True;"
  },
  "Webinterface": {
    "Title": "NetLock RMM On Premises",
    "Language": "en-US",
    "Membership_Reminder": false,
    "PublicOverrideUrl": "https://nl-webconsole.penguin-monitoring.de"
  },
  "Members_Portal_Api": {
    "Enabled": true,
    "ApiKeyOverride": "YOUR-MEMBERS-PORTAL-API-KEY"
  }
}

Adjust the values according to your environment's requirements.

NetLock RMM Server

1. Create a directory to store the appsettings.json file:

mkdir -p /home/netlock/server

2. Create directories for Let's Encrypt & logs:

mkdir -p /home/netlock/server/letsencrypt
mkdir -p /home/netlock/server/logs

3. Create persistent files directory for file server functionality:

mkdir -p /home/netlock/server/files
mkdir -p /home/netlock/server/internal

4. Create the appsettings.json file:

nano /home/netlock/server/appsettings.json

5. Fill in the appsettings.json with your configuration:

appsettings.json

{
  "Logging": {
    "LogLevel": {
      "Default": "Warning",
      "Microsoft": "Error",
      "Microsoft.Hosting.Lifetime": "Warning",
      "Microsoft.AspNetCore.SignalR": "Error",
      "Microsoft.AspNetCore.Http.Connections": "Error"
    },
    "Custom": {
      "Enabled": false
    }
  },
  "AllowedHosts": "*",
  "Kestrel": {
    "Endpoint": {
      "Http": {
        "Enabled": true,
        "Port": 7080
      },
      "Https": {
        "Enabled": false,
        "Port": 7443,
        "Force": false,
        "Hsts": {
          "Enabled": true
        },
        "Certificate": {
          "Path": "/certificates/certificate.pfx",
          "Password": ""
        }
      }
    },
    "Roles": {
      "Comm": true,
      "Update": true,
      "Trust": true,
      "Remote": true,
      "Notification": true,
      "File": true,
      "LLM": true,
      "Relay": true
    }
  },
  "Relay_Server": {
    "Port": 7081
  },
  "MySQL": {
    "Server": "mysql-container",
    "Port": 3306,
    "Database": "vwffyq",
    "User": "root",
    "Password": "frfsL9FGmQWGbZDM",
    "SslMode": "None",
    "AdditionalConnectionParameters": "AllowPublicKeyRetrieval=True;"
  },
  "Members_Portal_Api": {
    "Enabled": true,
    "ApiKeyOverride": "YOUR-MEMBERS-PORTAL-API-KEY"
  },
  "Environment": {
    "Docker": true
  }
}

Docker Compose with Traefik Reverse Proxy

docker-compose.yml

services:
  traefik:
    image: traefik:latest
    container_name: traefik
    command:
        - '--providers.docker=true'
        - '--providers.docker.exposedbydefault=false'
        - '--entrypoints.web.address=:80'
        - '--entrypoints.websecure.address=:443'
        - '--entrypoints.web.http.redirections.entryPoint.to=websecure'
        - '--entrypoints.web.http.redirections.entryPoint.scheme=https'
        - '--entrypoints.web.http.redirections.entryPoint.permanent=true'
        - '--certificatesresolvers.myresolver.acme.httpchallenge=true'
        - '--certificatesresolvers.myresolver.acme.httpchallenge.entrypoint=web'
        - '--certificatesresolvers.myresolver.acme.email=support@netlockrmm.com'
        - '--certificatesresolvers.myresolver.acme.storage=/certificates/acme.json'
    ports:
        - '80:80'
        - '443:443'
    volumes:
        - '/var/run/docker.sock:/var/run/docker.sock:ro'
        - '/home/netlock/certificates/traefik:/certificates'
    networks:
      netlock-network:
        ipv4_address: 172.18.0.2
    restart: always

  mysql:
    image: mysql:8.0
    container_name: mysql-container
    environment:
      MYSQL_ROOT_PASSWORD: "frfsL9FGmQWGbZDM"
      MYSQL_DATABASE: "vwffyq"
    volumes:
      - /home/netlock/mysql/data:/var/lib/mysql
      - /etc/localtime:/etc/localtime:ro
    networks:
      netlock-network:
        ipv4_address: 172.18.0.3
    restart: always
    command:
      - --skip-log-bin
      - --innodb_buffer_pool_size=1G
      - --innodb_log_file_size=256M
      - --innodb_flush_log_at_trx_commit=2
      - --max_connections=200

  netlock-rmm-web-console:
    image: nicomak101/netlock-rmm-web-console:latest
    container_name: netlock-rmm-web-console
    environment:
      - TZ=Europe/Berlin
    volumes:
      - '/home/netlock/web_console/appsettings.json:/app/appsettings.json'
      - '/home/netlock/web_console/internal:/app/internal'
      - '/home/netlock/web_console/logs:/var/0x101 Cyber Security/NetLock RMM/Web Console/'
      - '/home/netlock/certificates:/app/certificates'
      - /etc/localtime:/etc/localtime:ro
    labels:
      - 'traefik.enable=true'
      - "traefik.http.routers.webconsole.rule=Host(\`nl-webconsole.penguin-monitoring.de\`)"
      - 'traefik.http.routers.webconsole.entrypoints=websecure'
      - 'traefik.http.routers.webconsole.tls.certresolver=myresolver'
      - 'traefik.http.services.webconsole.loadbalancer.server.port=80'
      - "traefik.http.routers.webconsole-http.rule=Host(\`nl-webconsole.penguin-monitoring.de\`)"
      - 'traefik.http.routers.webconsole-http.entrypoints=web'
      - 'traefik.http.routers.webconsole-http.middlewares=redirect-to-https'
      - 'traefik.http.middlewares.redirect-to-https.redirectscheme.scheme=https'
    networks:
      netlock-network:
        ipv4_address: 172.18.0.4
    restart: always
    depends_on:
      - mysql

  netlock-rmm-server:
    image: nicomak101/netlock-rmm-server:latest
    container_name: netlock-rmm-server
    environment:
      - TZ=Europe/Berlin
    volumes:
      - '/home/netlock/server/appsettings.json:/app/appsettings.json'
      - '/home/netlock/server/internal:/app/internal'
      - '/home/netlock/server/files:/app/www/private/files'
      - '/home/netlock/server/logs:/var/0x101 Cyber Security/NetLock RMM/Server/'
      - '/home/netlock/certificates:/app/certificates'
      - /etc/localtime:/etc/localtime:ro
    labels:
      - 'traefik.enable=true'
      - "traefik.http.routers.rmmserver.rule=Host(\`nl-backend.penguin-monitoring.de\`)"
      - 'traefik.http.routers.rmmserver.entrypoints=websecure'
      - 'traefik.http.routers.rmmserver.tls.certresolver=myresolver'
      - 'traefik.http.services.rmmserver.loadbalancer.server.port=7080'
      - "traefik.http.routers.rmmserver-http.rule=Host(\`nl-backend.penguin-monitoring.de\`)"
      - 'traefik.http.routers.rmmserver-http.entrypoints=web'
      - 'traefik.http.routers.rmmserver-http.middlewares=redirect-to-https'
      - "traefik.tcp.routers.relay-tcp.rule=HostSNI(\`nl-relay.penguin-monitoring.de\`)"
      - 'traefik.tcp.routers.relay-tcp.entrypoints=websecure'
      - 'traefik.tcp.routers.relay-tcp.tls=true'
      - 'traefik.tcp.routers.relay-tcp.tls.certresolver=myresolver'
      - 'traefik.tcp.routers.relay-tcp.tls.passthrough=false'
      - 'traefik.tcp.routers.relay-tcp.service=relay-tcp'
      - 'traefik.tcp.services.relay-tcp.loadbalancer.server.port=7081'
    networks:
      netlock-network:
        ipv4_address: 172.18.0.5
    restart: always
    depends_on:
      - mysql

networks:
  netlock-network:
    driver: bridge
    ipam:
      config:
        - subnet: 172.18.0.0/16

Troubleshooting

To view container logs, use:

docker logs CONTAINERID

Server Roles

The NetLock server comes in eight different roles:

Comm

Handles communication with the NetLock comm agent, including device information, policy, and events synchronization.

Update

Provides update packages for the agents, including the comm agent, health agent, remote agent, agent installer, and agent uninstaller.

Trust

Provides the hashes of all update packages. Agents contact the trust server to verify the hashes of downloaded packages.

Remote

Handles real-time connections between agents and the web console, such as the remote shell and file browser.

Notification

Sends third-party notifications, such as email, Microsoft Teams, Telegram, and ntfy.sh.

File

Provides a file storage service for downloading and uploading files. This can be used to download tools or files on the customer side.

LLM

Provides AI-powered language model integration for intelligent automation and analysis features.

Relay

Handles persistent TCP connections for real-time agent communication and data relay functionality.

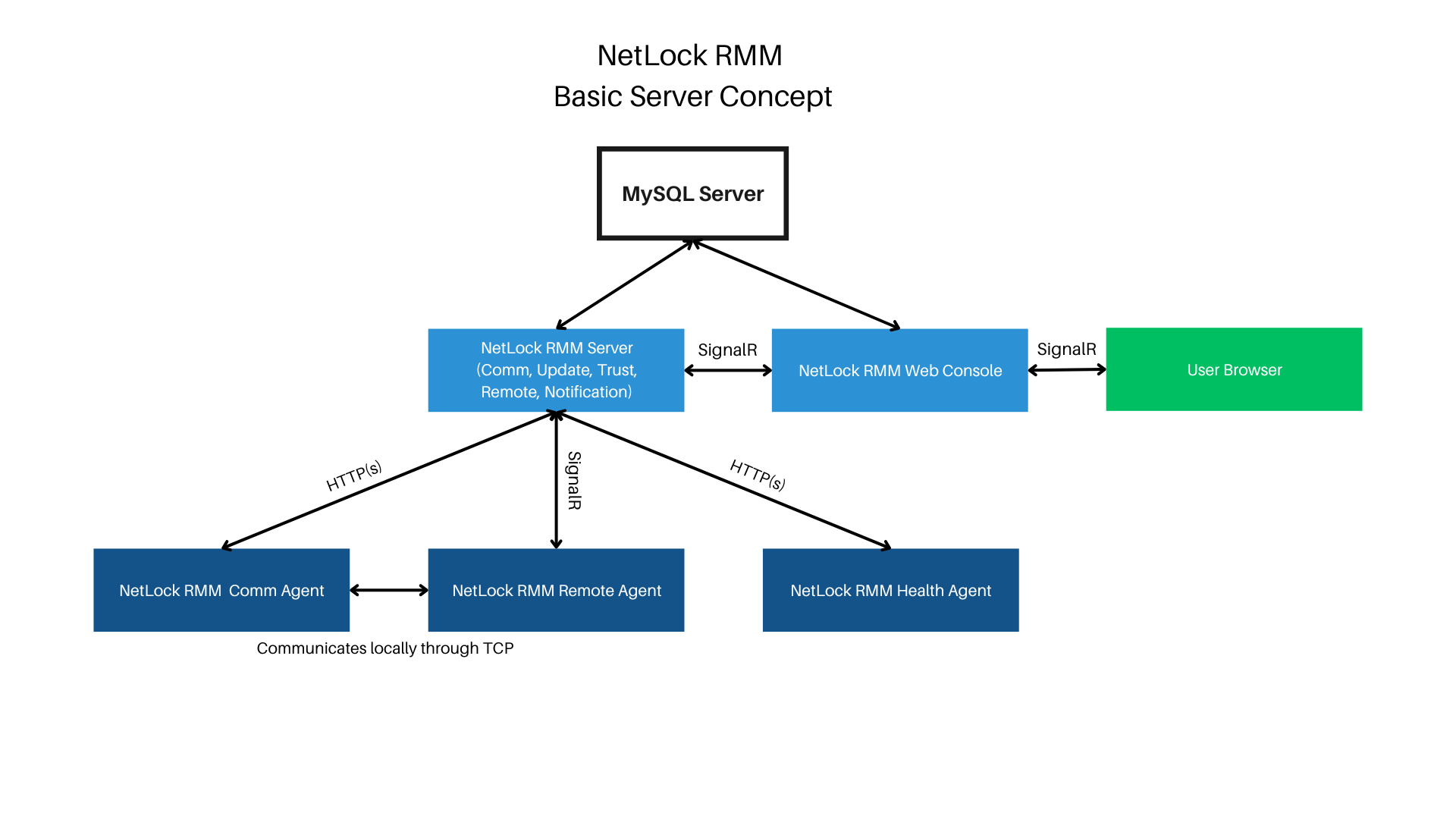

Basic Server Concept

The agents only perform outgoing connections, so port forwarding is not required on these machines. The web console renders the content server-sided and then sends it to the user's browser. Therefore, a permanent connection between the web console and user is necessary for operation.

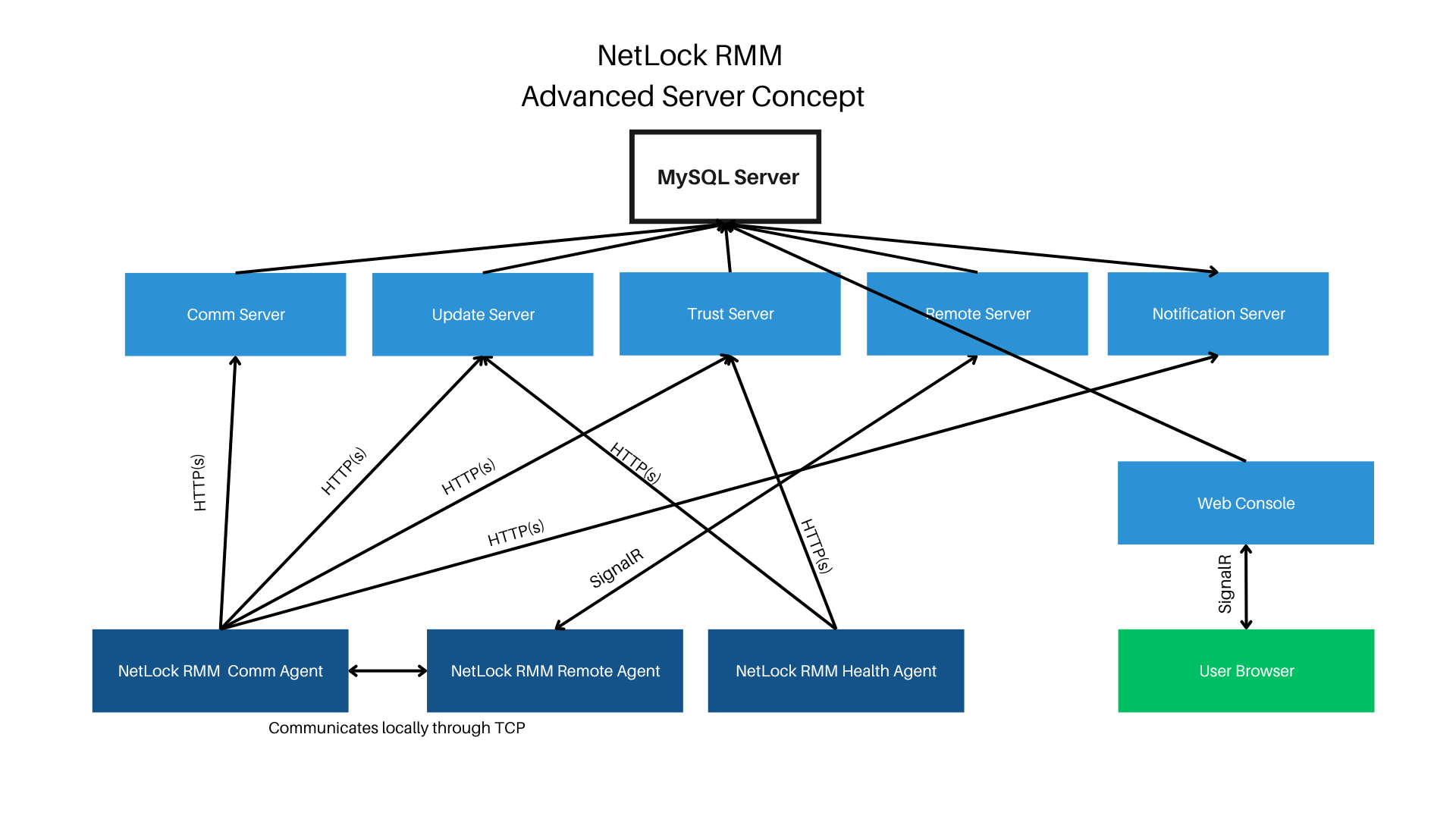

Advanced Server Concept

What are the benefits?

Performance

In addition to using load balancers in your network, splitting the NetLock server into different roles can improve response times.

Security

By dividing the server into different roles, you can significantly enhance security, especially against supply chain attacks like those seen with SolarWinds or Kaseya.

Example Security Scenario

A classic update server supply chain attack works by supplying malicious update packages through a compromised update server to installed agents.

The NetLock comm agent contacts the NetLock comm server to verify if it is up-to-date. If the server indicates that it is outdated, the agent contacts the NetLock update server and downloads the NetLock agent installer. Before executing it, the NetLock comm agent contacts the NetLock trust server to request the hash of the downloaded package.

If the local package hash differs from the hash provided by the NetLock trust server, the agent will not execute the downloaded installer. In summary, if an attacker compromises your NetLock update server, they would still need to compromise the NetLock trust server to deploy a malicious update.
