Agent Installation & Uninstallation

Create a New Agent Server Configuration

1. Open your web console.
2. In the top right corner, click the button with the display and download arrow to open the dialog.
3. Create a new configuration.
4. Select the newly created configuration.
5. Under Communication Server, enter the IP address/hostname and port of your NetLock server (comm). We really recommend hostnames/domains for SSL usage. IP's are NOT reliable and NOT recommended:
   • Examples: netlockrmm.com:7443, demo.netlockrmm.com:7443
   • You can specify multiple servers as fallback options by separating them with commas.
6. Repeat this process for each of the other NetLock server roles.
7. Select the desired tenant.
8. Select the desired location.
9. Choose the desired language. This setting affects reporting; the language of the machine is irrelevant.
10. Save the configuration.
11. Download the configuration.

12. Obtain the NetLock agent installer through the members portal: https://docs.netlockrmm.com/en/members-portal
13. Transfer both the NetLock agent installer and the downloaded server_config.json file to the target machine.

Windows

1. Open Command Prompt (CMD) or PowerShell as an administrator.
2. Execute the NetLock agent installer with the following command:

"C:\Users\Administrator\Desktop\installer\NetLock_RMM_Agent_Installer.exe" clean "C:\Users\Administrator\Desktop\server_config.json"

Linux & macOS

1. Open the terminal.
2. Make the installer executable:

sudo chmod +x NetLock_RMM_Agent_Installer

3. Execute it:

sudo ./NetLock_RMM_Agent_Installer clean path/to/server_config.json

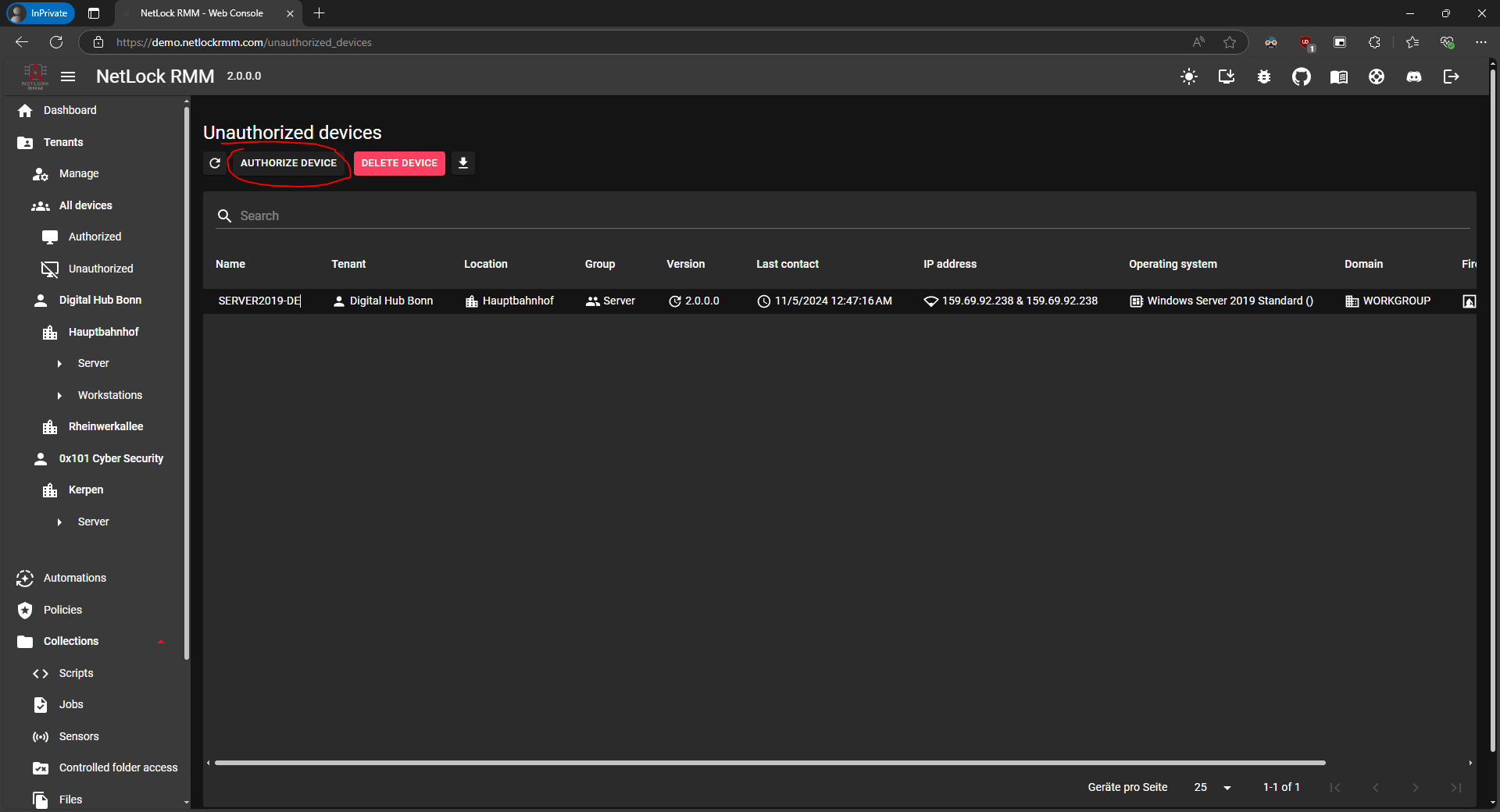

4. All set! Once installation is complete, the device should appear shortly in the web console under "Unauthorized." Simply approve it to grant access.

Generating & Using One-Click Installer

If you don't want to use the server_config.json with parameters installation method, you can generate a single installer file.

1. Under "Download installer" select the architecture of the target device you want to install on.
2. Click on "Download installer" and give it a few seconds to process.
3. Move the installer to the target device and execute it as administrator or root for Linux & macOS.

The server_config.json is now embedded into the installer executable.

Windows

You can now run the installer by right-clicking on it and selecting "Run as administrator."

Or with CMD & PowerShell:

1. Open Command Prompt (CMD) or PowerShell as an administrator.
2. Execute the NetLock agent installer with the following command:

"C:\Users\Administrator\Desktop\installer\NetLock_RMM_Agent_Installer.exe"

4. All set! Once installation is complete, the device should appear shortly in the web console under "Unauthorized." Simply approve it to grant access.

Linux & macOS

1. Open terminal.
2. Make the installer executable:

sudo chmod +x path/to/installer

3. Execute it:

sudo ./NetLock_RMM_Agent_Installer

4. All set! Once installation is complete, the device should appear shortly in the web console under "Unauthorized." Simply approve it to grant access.

Parameters

• clean
  • Removes all previous NetLock agent installations
  • Recommended for fresh installations
• fix
  • Removes existing NetLock agent installations, excluding the health agent. Updates the old server_config.json with the values provided in the new server_config.json.
  • Recommended for updating the server configuration or repairing the agent installation without affecting the agents' authorization.
• uninstall
  • Uninstalls the NetLock RMM Agent completely
• --hidden -h
  • Hides the installer window.
• --no-log / --nolog
  • After installation the temp log files will be cleaned.
• --temp <path> / -t <path>
  • Uses a custom temporary directory instead of the system default

Parameter Details

Examples

./NetLock_RMM_Agent_Installer clean /home/user/server_config.json --temp /mnt/custom/temp

NetLock_RMM_Agent_Installer.exe clean C:\configs\server_config.json --temp D:\CustomTemp

NetLock_RMM_Agent_Installer.exe clean C:\configs\server_config.json --hidden --no-log

sudo ./NetLock_RMM_Agent_Installer clean /etc/netlock/server_config.json --temp /var/tmp/netlock --no-log

NetLock_RMM_Agent_Installer.exe clean C:\configs\server_config.json --temp E:\Temp --hidden --no-log

./NetLock_RMM_Agent_Installer fix /path/to/server_config.json

Supported Platforms

Firewall

The NetLock agent installer retrieves the agent packages and the NetLock agent uninstaller from the backend. Ensure it has access to these resources.

NetLock agents automatically configure the required exceptions in Windows Firewall (no port forwarding, only outgoing) according to your server settings, eliminating the need for manual configuration on Windows.

Once the installation is complete, you should be able to see the device listed under unauthorized devices in the system. It may take a minute for it to appear. Once it does, you will need to authorize the device, after which it will be listed under authorized devices.

PowerShell Installation Script

# NetLock RMM Agent Installation Script
# This script downloads and installs the NetLock RMM Agent
$packageUrl = "replace with your own"

# Check if the service NetLock_RMM_Agent_Comm exists
$serviceName = "NetLock_RMM_Agent_Comm"
$service = Get-Service -Name $serviceName -ErrorAction SilentlyContinue

if ($service) {
    Write-Host "Service '$serviceName' already exists. Installation will not proceed." -ForegroundColor Yellow
    exit 0
}

Write-Host "Service '$serviceName' not found. Proceeding with installation..." -ForegroundColor Green

# Package download URL
$tempFolder = "C:\temp"
$zipFile = "$tempFolder\NetLock_Agent.zip"
$extractFolder = "$tempFolder\NetLock_Agent"

# Create temp folder if it doesn't exist
if (-not (Test-Path -Path $tempFolder)) {
    Write-Host "Creating folder: $tempFolder" -ForegroundColor Cyan
    New-Item -ItemType Directory -Path $tempFolder -Force | Out-Null
}

# Download the ZIP file
Write-Host "Downloading NetLock RMM Agent package..." -ForegroundColor Cyan
try {
    Invoke-WebRequest -Uri $packageUrl -OutFile $zipFile -UseBasicParsing
    Write-Host "Download completed successfully." -ForegroundColor Green
} catch {
    Write-Host "Error downloading package: $_" -ForegroundColor Red
    exit 1
}

# Unzip the package
Write-Host "Extracting package to $extractFolder..." -ForegroundColor Cyan
try {
    # Remove existing extract folder if it exists
    if (Test-Path -Path $extractFolder) {
        Remove-Item -Path $extractFolder -Recurse -Force
    }

    Expand-Archive -Path $zipFile -DestinationPath $extractFolder -Force
    Write-Host "Extraction completed successfully." -ForegroundColor Green
} catch {
    Write-Host "Error extracting package: $_" -ForegroundColor Red
    exit 1
}

# Find and execute the installer
$installerPath = Get-ChildItem -Path $extractFolder -Filter "NetLock_RMM_Agent_Installer.exe" -Recurse | Select-Object -First 1

if ($installerPath) {
    Write-Host "Running installer: $($installerPath.FullName)" -ForegroundColor Cyan
    try {
        Start-Process -FilePath $installerPath.FullName -Wait -NoNewWindow
        Write-Host "Installation completed successfully." -ForegroundColor Green
    } catch {
        Write-Host "Error running installer: $_" -ForegroundColor Red
        exit 1
    }
} else {
    Write-Host "Installer executable 'NetLock_RMM_Agent_Installer.exe' not found in the extracted package." -ForegroundColor Red
    exit 1
}

# Cleanup
Write-Host "Cleaning up temporary files..." -ForegroundColor Cyan
try {
    Remove-Item -Path $zipFile -Force -ErrorAction SilentlyContinue
    Remove-Item -Path $extractFolder -Recurse -Force -ErrorAction SilentlyContinue
    Write-Host "Cleanup completed." -ForegroundColor Green
} catch {
    Write-Host "Warning: Could not clean up temporary files." -ForegroundColor Yellow
}

Write-Host "NetLock RMM Agent installation process completed!" -ForegroundColor Green

Requirements

Refer to supported operating systems: Supported OS/Distributions

1. Execute it with your desired parameters using CMD or PowerShell.

Parameters

• uninstall
  • Removes all previous NetLock agent installations

Windows

1. Move the installer to the target device.
2. Open CMD or PowerShell as administrator.

"C:\Users\Administrator\Desktop\uninstaller\NetLock_RMM_Agent_Installer.exe" uninstall

Linux & macOS

1. Open the terminal.
2. Make the installer executable:

sudo chmod +x NetLock_RMM_Agent_Installer

3. Execute it:

sudo ./NetLock_RMM_Agent_Installer uninstall

Uninstallation complete.
